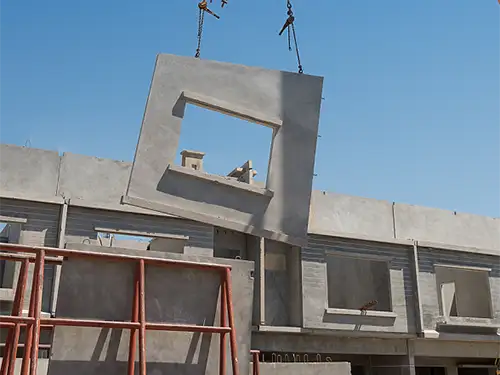

Tilt-Up Structures, Charlotte, NC

Tilt-up construction is a building method where large concrete wall panels are poured on-site and then lifted into position to form the exterior and structural walls of a building. This approach is widely used in commercial and industrial construction because it combines on-site control, speed of construction, and structural strength. Carolina Concrete Group provides tilt-up concrete construction for projects across North Carolina and South Carolina, delivering panels that are built, lifted, and set with precision as part of a coordinated structural system.

Built on the Slab, Raised into Place

Tilt-up panels are typically cast horizontally on a prepared slab surface or casting bed. Once the concrete reaches the required strength, cranes are used to lift each panel into its vertical position, where it is temporarily braced and then permanently connected to the building structure.

This process allows wall panels to be created directly on-site, eliminating the need for transportation and allowing for greater control over panel dimensions, openings, and finishes.

Ideal for Large-Scale Building Envelopes

Tilt-up construction is commonly used for buildings that require large, uninterrupted wall sections and efficient construction timelines. These include:

  • Warehouses and distribution centers
  • Manufacturing and industrial facilities
  • Retail and commercial buildings
  • Office and mixed-use developments
  • Institutional and municipal structures

Because panels can be cast in sequence and lifted quickly, tilt-up is especially effective for projects with repetitive wall layouts and large footprints.

Panel Planning and Layout Strategy

Tilt-up construction begins well before concrete is placed. Panel sizes, shapes, and lifting points must be carefully planned to ensure each piece can be safely cast, lifted, and installed.

Carolina Concrete Group works from project plans to coordinate:

  • Panel dimensions and thickness
  • Placement of door and window openings
  • Location of lifting inserts and embeds
  • Sequencing for casting and erection

This planning stage is critical for maintaining efficiency during the lifting process and ensuring each panel fits correctly once in position.

Reinforcement and Embedded Components

Each tilt-up panel is reinforced with steel to provide the strength needed for both lifting and long-term structural performance. In addition to reinforcement, panels often include embedded components such as connection plates, anchors, or insulation systems.

Our team ensures:

  • Reinforcement is placed accurately within each panel
  • Embedded items are secured before the pour
  • Panel edges and surfaces meet design requirements
  • Structural connections are prepared for installation

These elements allow the panel to function as both a structural wall and part of the building envelope.

Lifting and Panel Erection

Once panels have cured to the required strength, cranes are used to lift them into place. This stage requires careful coordination between crews, equipment operators, and site conditions.

Carolina Concrete Group manages:

  • Safe lifting procedures based on panel weight and size
  • Controlled placement to align panels with the foundation
  • Temporary bracing to hold panels in position
  • Coordination with structural connections and framing

Precision during erection is essential to ensure panels are aligned correctly and secured without damage.

Structural Integration and Connections

After panels are set, they are connected to the building’s structural system. This may include attachment to the slab, roof framing, or other structural elements. Once connections are complete and bracing is removed, the panels function as a permanent part of the building.

Tilt-up panels provide both load-bearing capacity and enclosure, reducing the need for additional wall systems and streamlining the overall construction process.

Speed and Efficiency on Active Jobsites

One of the main advantages of tilt-up construction is its ability to compress construction timelines. Because panels are cast on-site and lifted into place in sequence, wall systems can be completed quickly once the building slab is ready.

This efficiency makes tilt-up a strong option for projects where schedule and scale are key factors, particularly in commercial and industrial development.

A Coordinated Building Method

Tilt-up construction requires more than just concrete work-it involves planning, sequencing, lifting operations, and structural coordination. Carolina Concrete Group approaches tilt-up structures with a focus on execution at every stage, from panel casting to final placement.

By combining on-site control with experienced crews, we deliver tilt-up systems that align with project demands, integrate with structural design, and provide a durable solution for large-scale construction. Contact us today on 704-690-5797 or via our online form.
